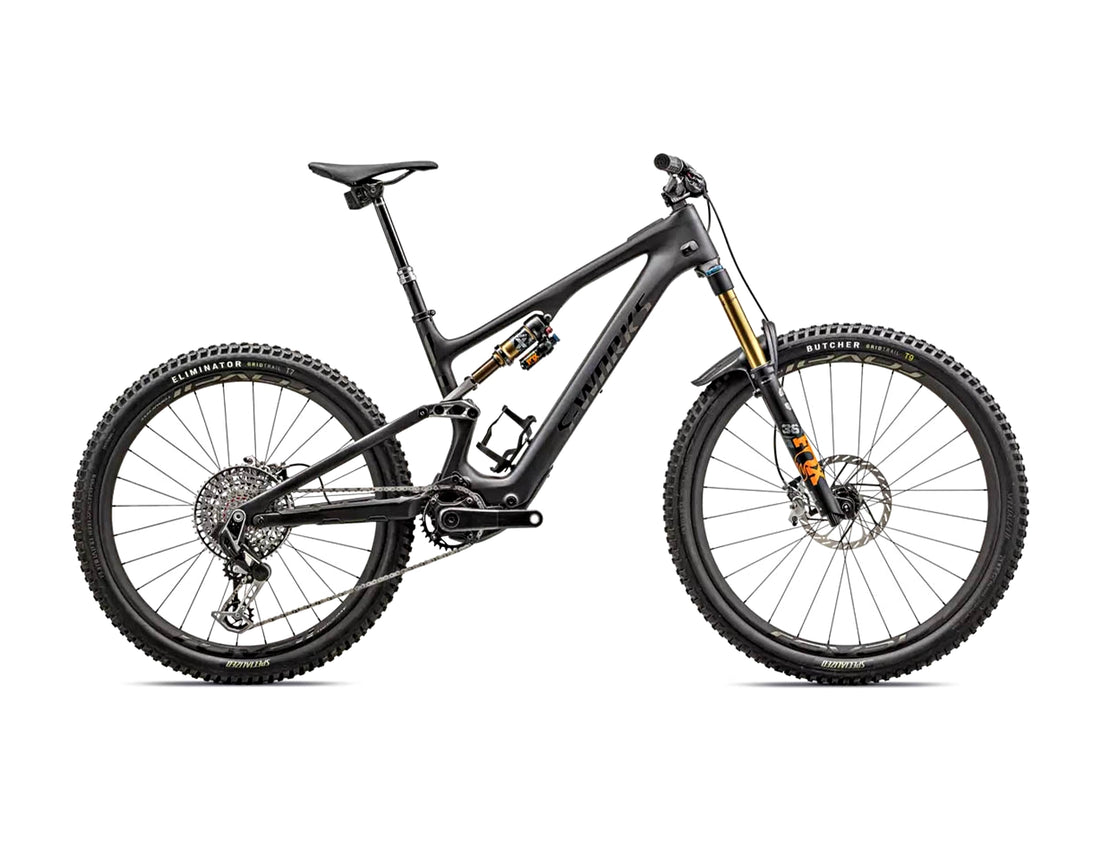

The all-new Specialized S-Works Turbo Levo SL delivers unmatched ride quality and capability, amplified. With the all-new 50Nm SL 1.2 motor, 33% more power, and an all-new carbon frame that is mixed wheel and 29" compatible, the Turbo Levo SL really is the ultimate trail bike.

S-Works Levo SL Features:

- All-Specialized SL 1.2 Motor

- All new carbon frame (Mixed 29/27.5" stock - convertible to full 29")

- New SRAM XX AXS Eagle T-Type Transmission
- New SRAM Code Stealth Ultimate brakes

For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

• All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.)
• 160mm front travel and 150mm rear travel
• All-new SL 1.2 Motor with 43% more torque (50Nm) and 33% more power (320 peak watts)
• New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions.
• The headtube angle and bottom bracket height are both adjustable.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL —  The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL —  A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance; it’s you pedaling, but a side of you only a Levo can bring out.

GO DEEP RANGE — Levo SL features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, you’re set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range.

MASTERMIND TCU — Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Mission Control App as well as the rider, all in a protected and easily visible display. MasterMind TCU enables over-the-air updates so your bike will get even better over time. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.

MISSION CONTROL APP — The Levo SL integrates fully with our Mission Control App and lets you personalize your motor characteristics with MicroTune, Support, and Peak Power.  You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Lock.

Technical Specifications

FRAMESET

Frame: All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder: Alloy, 38.6mm

E-BIKE

Motor: New Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Battery: Specialized SL1-320, fully integrated, 320Wh

Wiring Harness: Custom Specialized wiring harness

Charger: Custom charger, 48V System w/ SL system charger plug

BRAKES

Rear Brake: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm

Front Brake: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm

COCKPIT

Saddle: Bridge, 155/143mm, Hollow Ti-rails

Grips: Deity Grips

Stem: Deity, 35.0mm

SeatPost: RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

Handlebars: Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

WHEELS

Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Inner Tubes: Standard, Presta Valve

Rims: Roval Traverse SL Carbon, 29 Front, 27.5 Rear, 30mm inner width, hand-built, 2Bliss Ready

Spokes: DT Swiss Competition Race

Rear Hub: Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing

Front Hub: Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing

SUSPENSION

Fork: Fox 36 Factory, 29", 44mm offset, Grip 2 damper, Kashima, S1: 150mm, S2-S6:160mm

Rear Shock: S2-S6: Fox Float X Factory series, Kashima, 21x55mm, S1: Fox Float DPS Factory, Kashima, 210x50mm

DRIVETRAIN

Chainrings: New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Shift Levers: SRAM AXS POD Controller

Crankset: SRAM Carbon Crankset, Dub interface

Chain: SRAM XX Eagle Transmission Flattop Chain

Rear Derailleur: SRAM XX Eagle Transmission Derailleur

Cassette: SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

ACCESSORIES

SWAT: SWAT CC steerer tube integrated tool with chain tool and link

*Specifications are subject to change without notice
