Frame
Summum MX 6061 Stealth Alloy Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05.
Sizes
M / L / XL
Rear shock
RockShox Vivid Coil Select+, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
R55, C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
Fork
Rockshox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload
Headset
Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º sealed bearings, reach kit cups( +-5 mm)
Stem
Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer
Handlebar
Onoff S6 1.5 7050 alloy, rise: 35 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle
Ergon SM10 DH Black
Front brake
Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
Rims
DT Swiss F 1900 Classic, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear
Spokes
DT J-bend spokes, DT competition®, black
Front hub
DT Swiss 370, Boost 20x110mm, IS 6 bolts
Rear hub
DT Swiss 370 Classic with 18T Ratchet LN System, 12x157mm, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
Crankset
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
Rings
36T, aluminum, X-SYNC
Bottom bracket
Sram DUB BSA, sealed bearings, 83mm
Chain
Sram PC1110 11s, Powerlock
Front derrailleur
E.13 LG1+ Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 36-38T, ISCG 05 adjustable upper slider
Rear derrailleur
Sram GX DH, 7s, medium cage
Shift levers
Sram trigger GX DH 7s, X-actuation 1:1
Casette
Sram PG 720 11-25T, 7s
Derailleur hanger
Sram UDH
Others
*Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout
Weight
19,1 kg

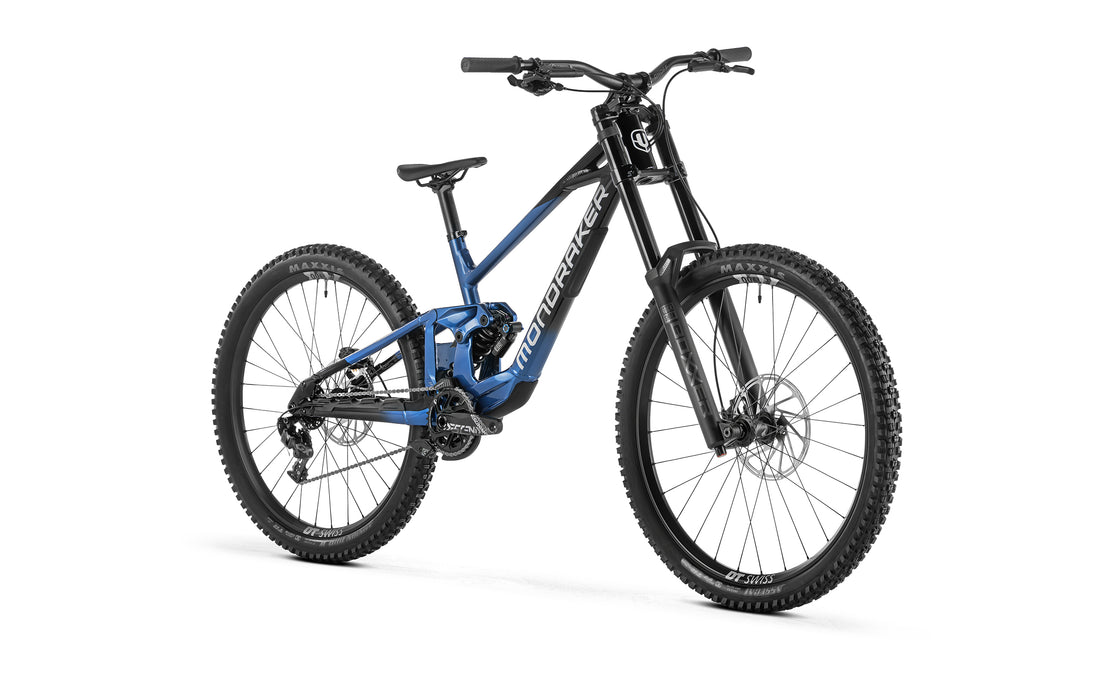

27 Mondraker Summum R

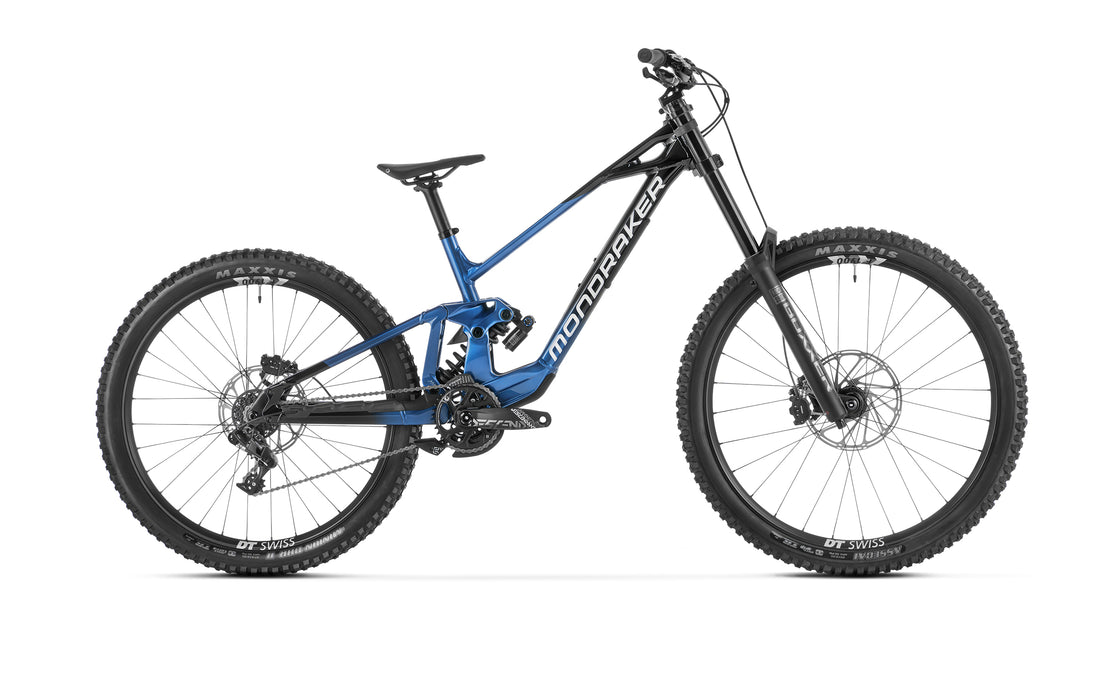

27 Mondraker Summum R
