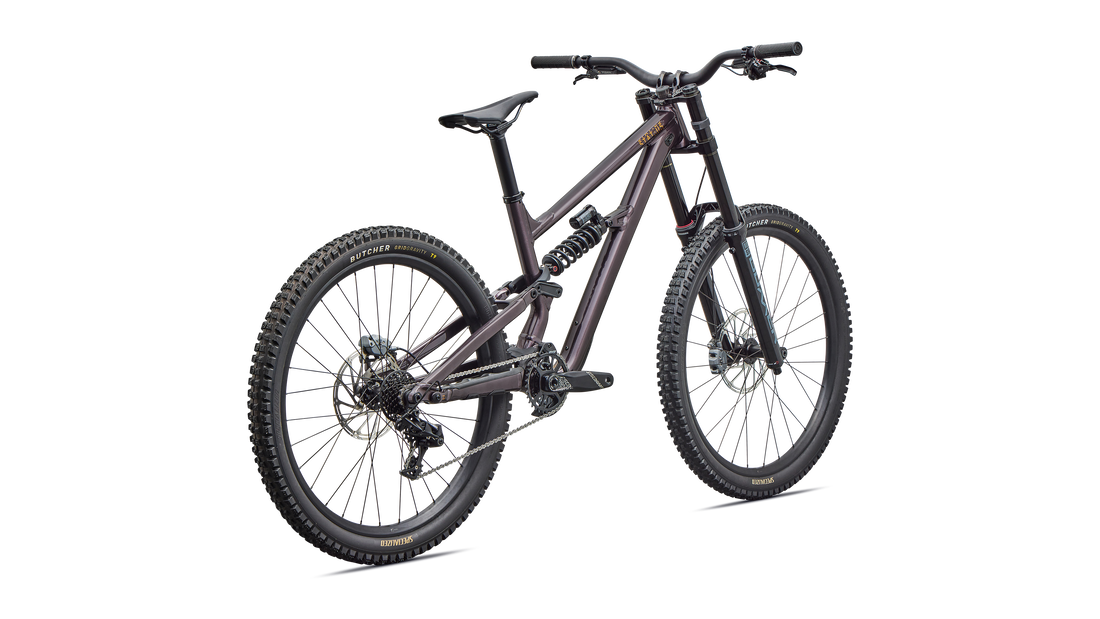

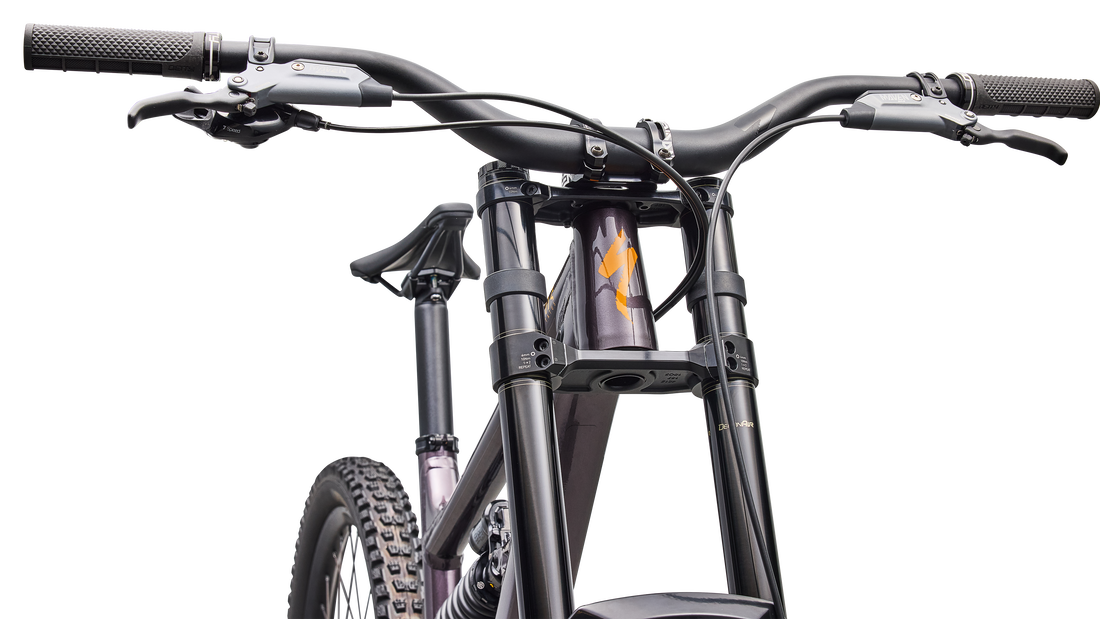

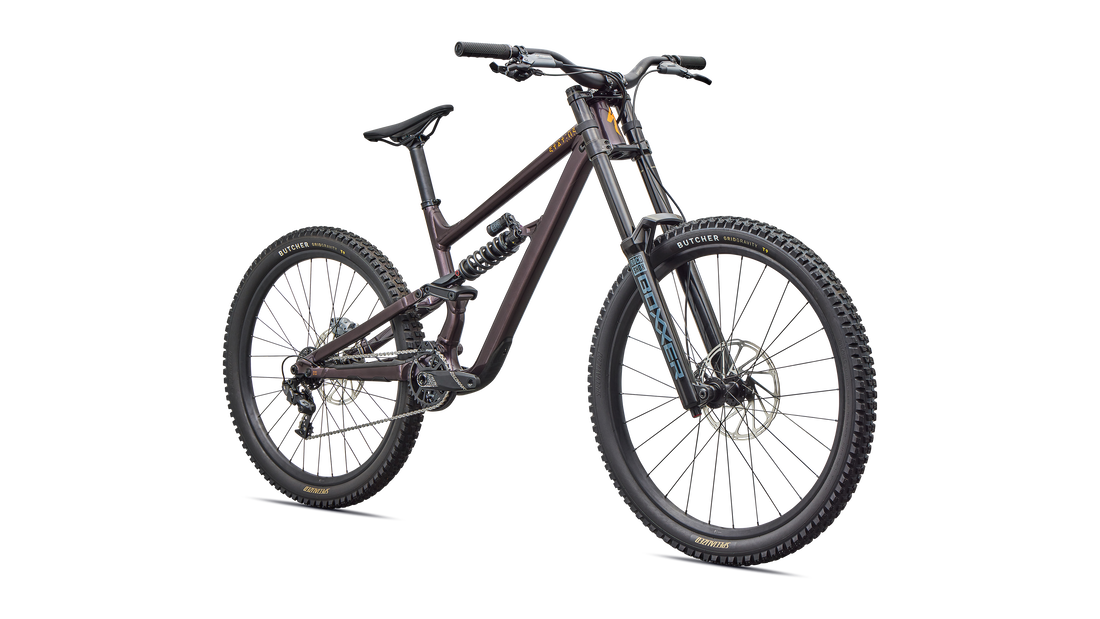

STATUS 2 170 DH
Size Guide
STATUS 2 170 DH
STATUS 2 170 DH
Size Guide
Product Details
Description
Frameset
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
RockShox Vivid Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm
Fork
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
Cockpit
Seat Post
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
Stem
Descendant 35mm Direct Mount Stem, 50mm length
Grips
Deity Lockjaw Grips
Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S2: 780 width, 20mm rise: S3-S5: 800 width, 50mm rise
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Drivetrail
Shift Levers
SRAM GX DH, trigger, 7-speed
Rear Derailleur
SRAM GX DH, 7-speed, trigger
Cassette
SRAM GX DH, 7-speed, 11-25t
Shift Levers
SRAM GX DH, trigger, 7-speed
Crankset
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
SRAM PC1110 w/ Powerlink™
SRAM PC1110 w/ Powerlink™
Bottom Bracket
SRAM DUB Threaded Wide
Wheels & Tyres
Front Hub
Alloy, sealed cartridge bearings, 20x110mm, 28h
Rear hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32H
Rims
Roval 29"/27.5" Alloy DH, 28mm internal width, 28h, tubeless ready
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear Tire
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5X2.4
Spokes
DT Swiss Elemental
Tubes
Standard, Presta Valve
Accessories
