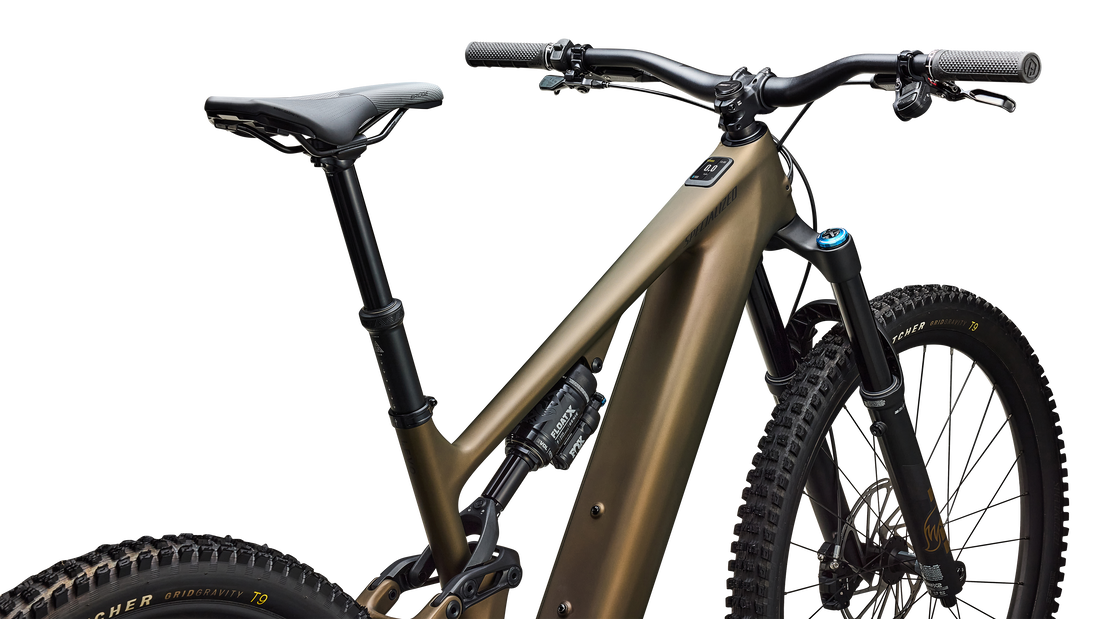

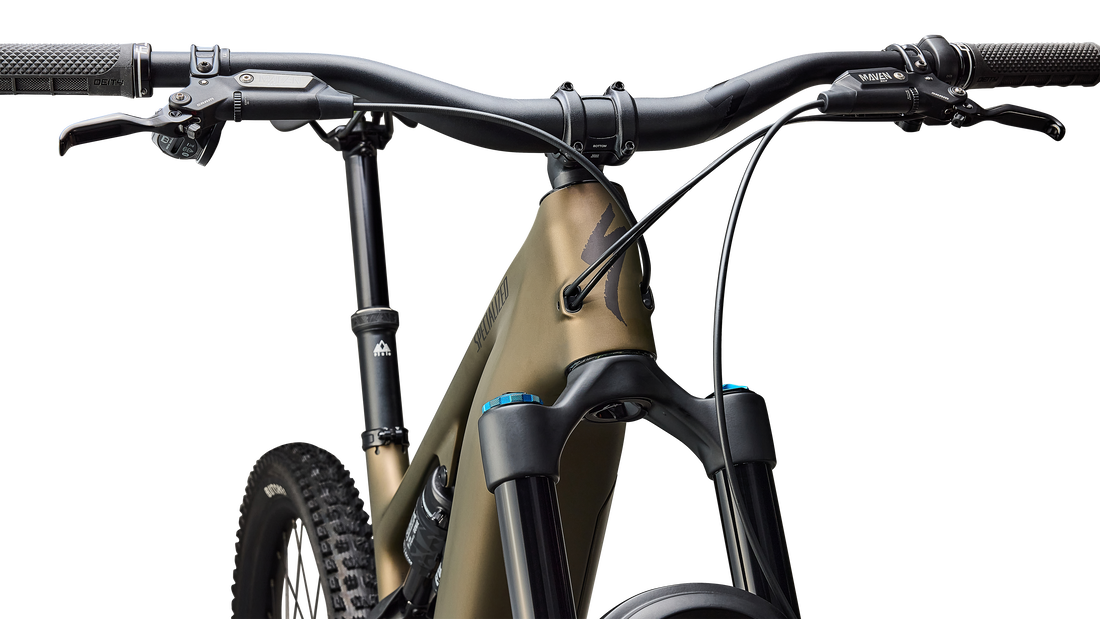

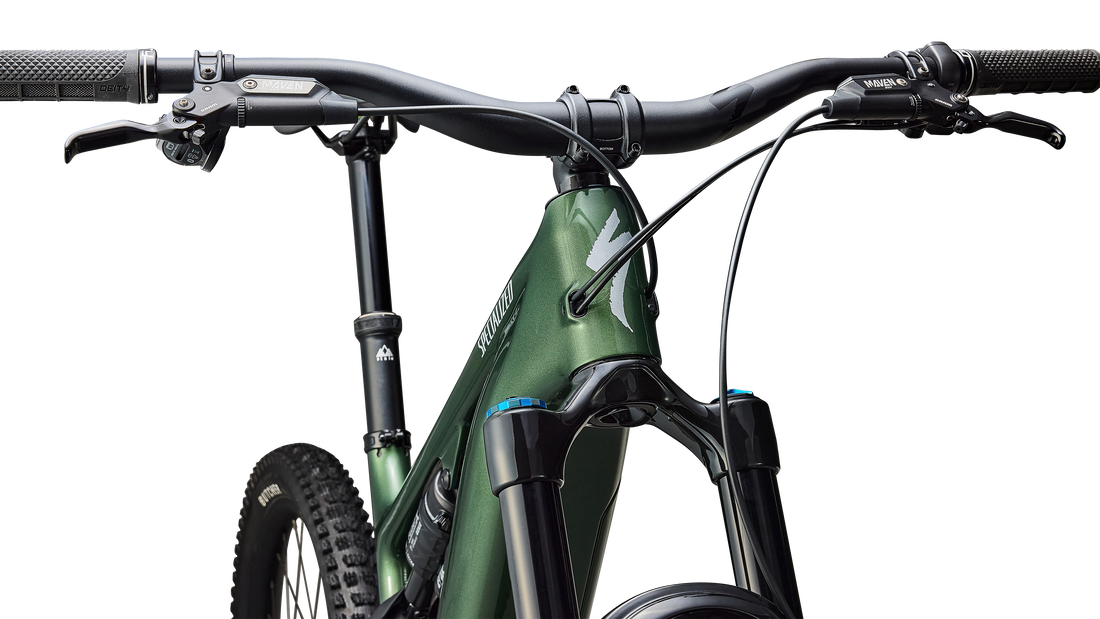

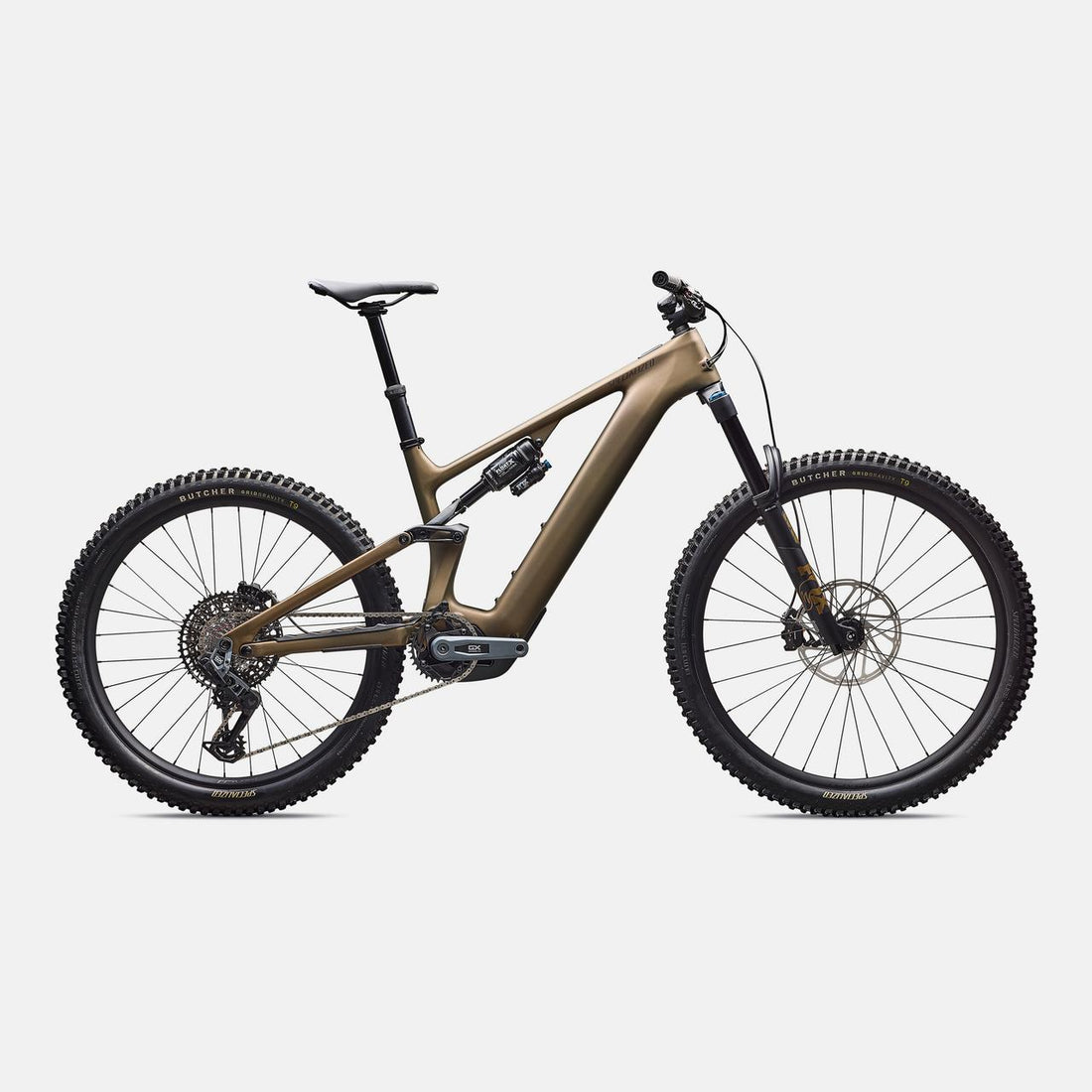

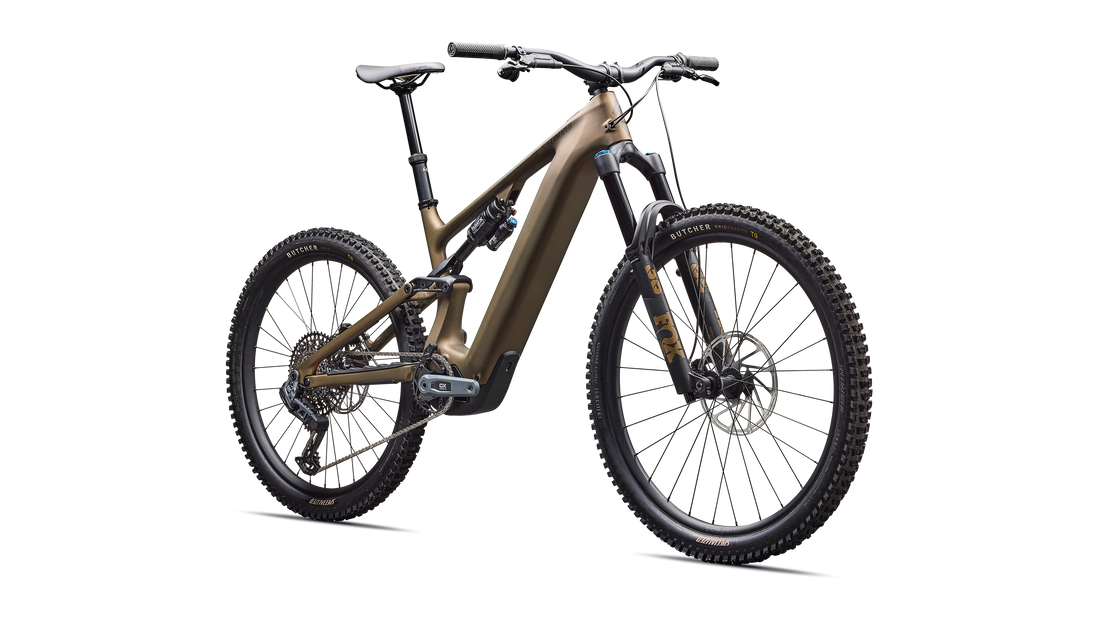

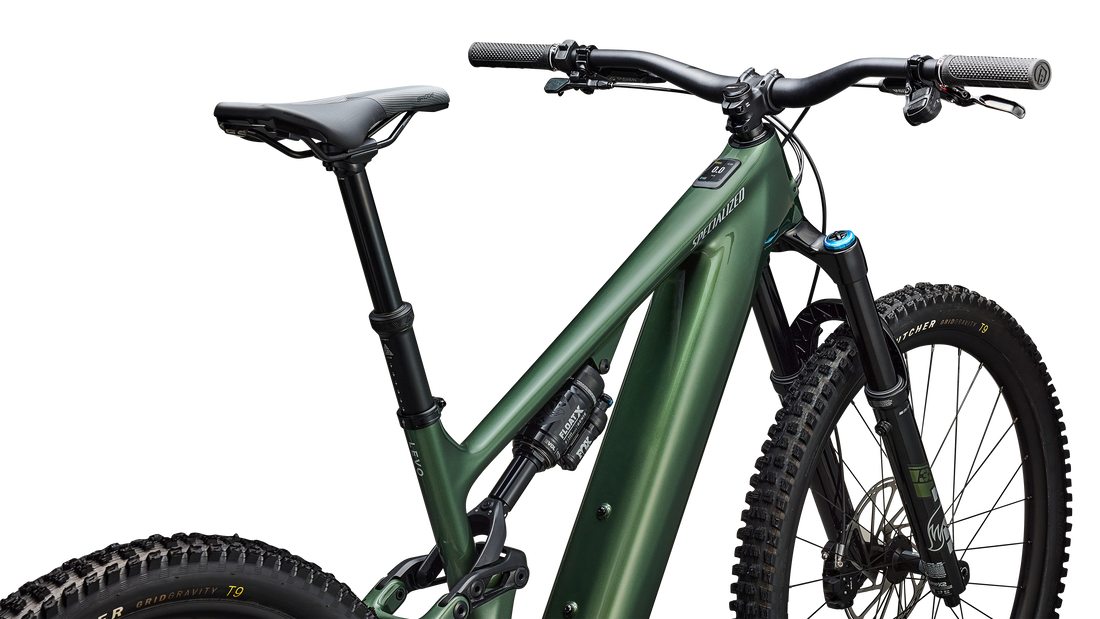

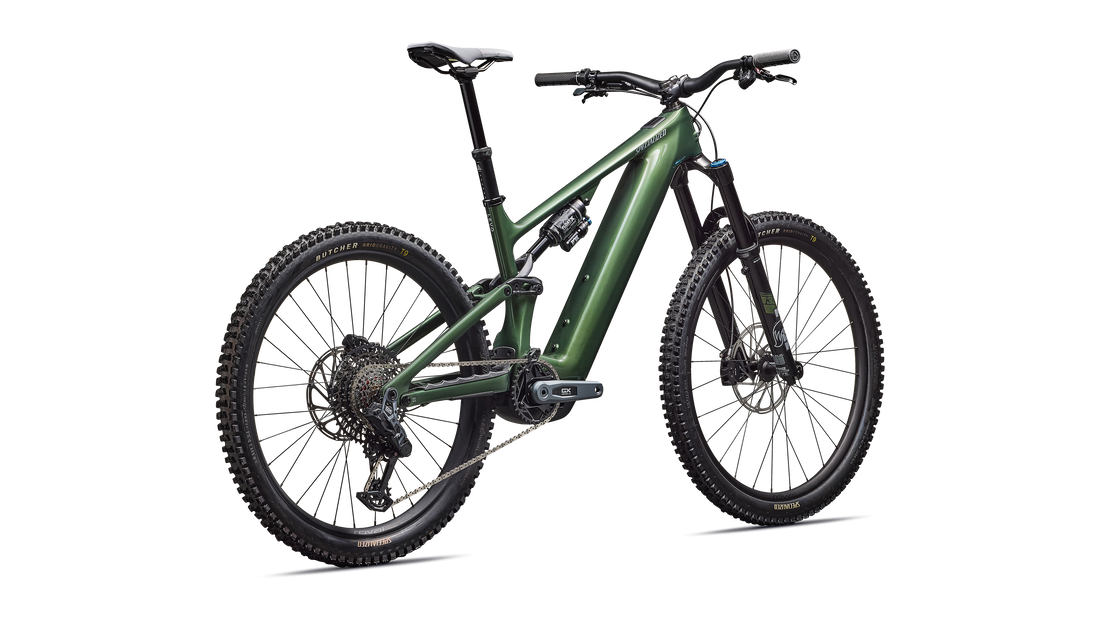

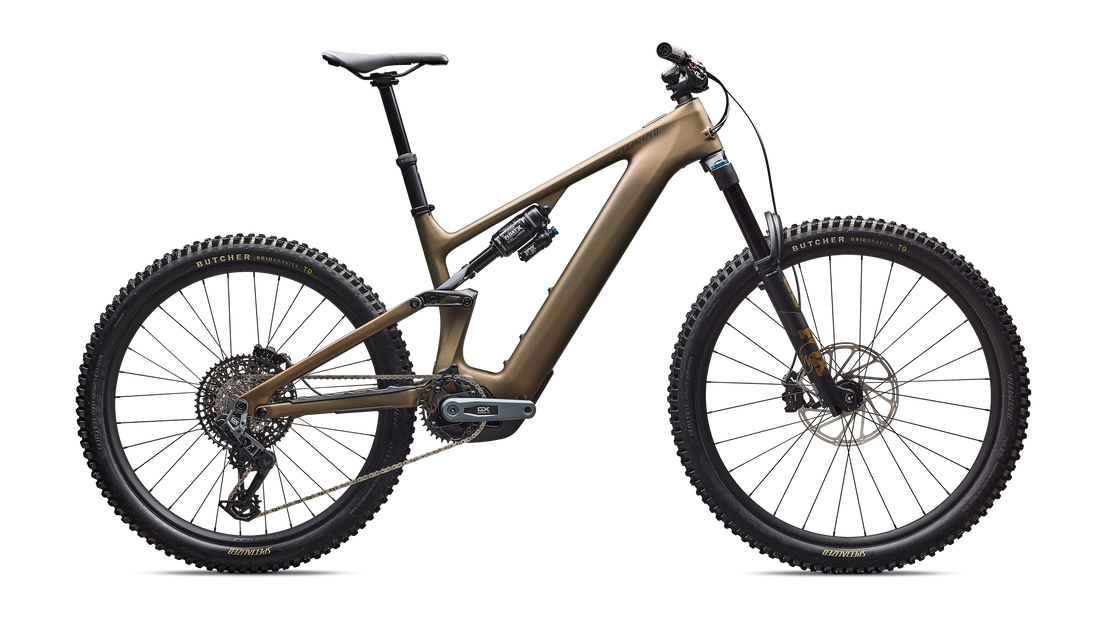

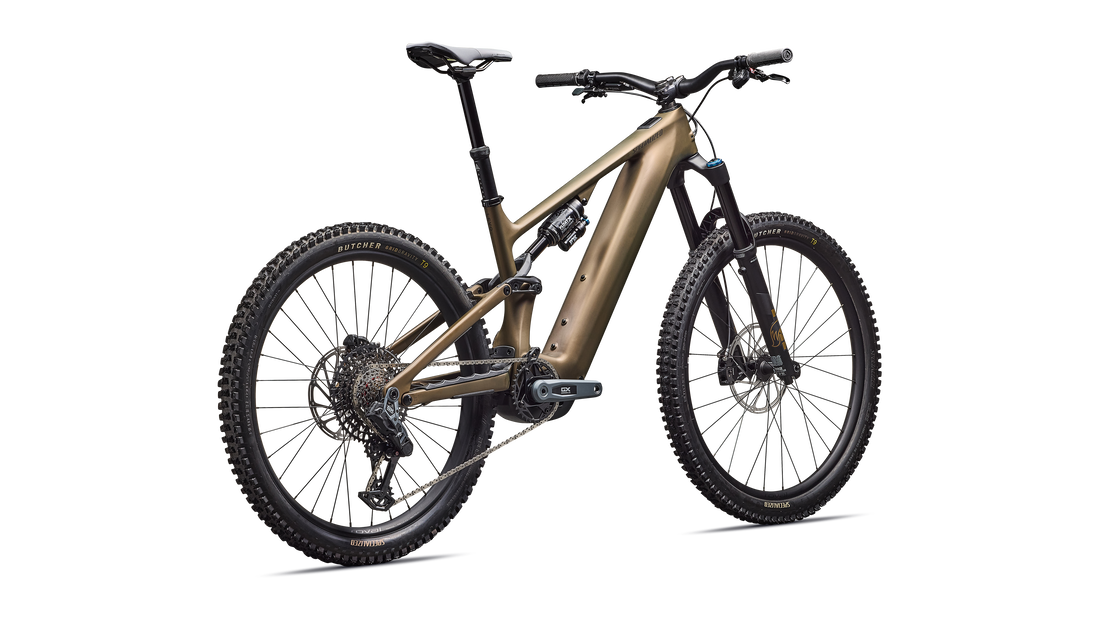

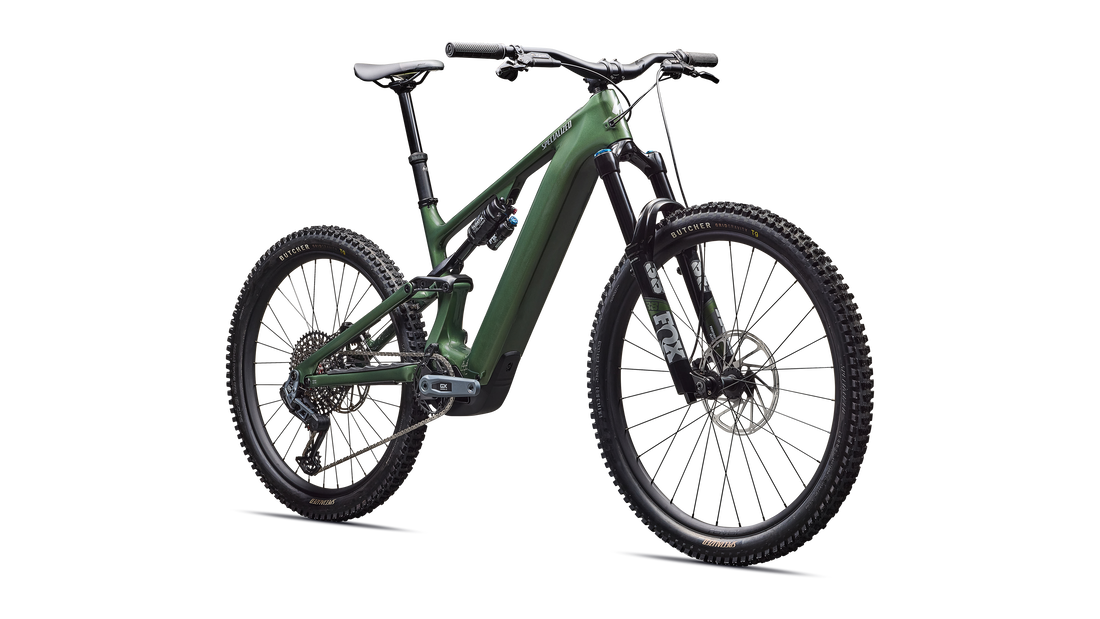

Turbo Levo 4 Expert
Size Guide
Turbo Levo 4 Expert
Turbo Levo 4 Expert
Size Guide
Product Details
Description
Frameset
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
SWAT
SWAT internal downtube storage
Suspension
Rear Shock
FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment
Fork
FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel
Cockpit
Seat Post
PNW Loam post w/travel adjust S2: 125mm, S3: 170mm, S4/S5/S6: 200mm
Saddle
Bridge Comp, Hollow Cr-mo rails
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Lockjaw grips
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrail
Shift Levers
SRAM AXS POD Controller
SRAM GX Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
SRAM GX Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Shift Levers
SRAM AXS POD Controller
Crankset
SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Chain
SRAM GX Eagle Transmission Flattop Chain
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tyres
Front Wheel
Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
Rear Wheel
Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Tubes
Standard, Presta valve
ELECTRIC
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666W power
UI Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Battery
840Wh battery
Charger
Specialized 4amp charger
Accessories
Shipping & Returns
Domestic Shipping Policy
Small items:
Small orders are shipped using the Australia Post eParcel system which allows us to ship to most Residential and Business addresses. Once your order ships you will receive an email with your tracking number.
Large items:
Bulky orders (ie: bikes and large items) are usually shipped via Fedex/TNT Express or Startrack. Bulky shipments must be delivered to a residential or business address, and cannot be delivered to PO boxes. If you would like to arrange your own freight, please contact us.
Some products cannot be shipped:
Some items cannot be shipped interstate, due to our dealer agreements or restrictions on shipping certain items. If you don't see a shipping option for your order, please contact us for more information and we'll be happy to help!
Shipment processing time
We do our best to dispatch orders within 1 business day from your order. Orders are not processed or shipped from Friday, 12 pm AWST through Sunday, or public holidays.
For orders from Supplier Warehouse, allow an additional 4-7 days before your order will be ready for collection or ready to be shipped from Empire Cycles.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. If your shipment experiences a significant delay, we will contact you via email or phone.
Shipping rates and delivery estimates
Shipping charges for your order will be calculated and displayed at checkout. Please note that all shipping charges and quotes are an estimate. Actual shipping rates may vary.
Free Shipping promotions will be shipped by a standard freight carrier of our choice.
All shipping quotes are an estimate, and certain bulky or heavy orders may require an additional shipping fee.
Shipment to P.O. boxes
Only small orders can be delivered to P.O. boxes.
Shipment Confirmation and Order Tracking
You will receive a Shipment Confirmation email with your tracking number once your order has shipped. The tracking number will be active within 24 hours.
Customs, Duties, and Taxes
Empire Cycles is not responsible for any customs and taxes applied to your order. All fees imposed during or after shipping are the customer’s responsibility (including tariffs, taxes, and other costs).
Damages
Empire Cycles is NOT liable for any products damaged or lost during shipping. If you received your order damaged, please photograph / document the damage and file a claim with the shipment carrier. Save all packaging materials and damaged goods before filing a claim.
International Shipping Policy
We currently do not ship outside Australia
Incorrect Shipping Addresses and Refused Delivery
We make every attempt to validate the shipping address provided at checkout to ensure it’s recognised as a valid address by Australia Post. If we cannot validate the address, we will try to contact the customer to provide an updated address. If we cannot update the address, the order will be canceled and refunded.
If nobody is home and your order is undeliverable, your shipping fee is not refundable and additional freight payment will be required if you wish for us to send your order again.
Empire Cycles will not be held responsible if the customer provides the wrong shipping address and we cannot recover the package.
Missing or Stolen Shipments
If you didn’t receive your order, but the shipping carrier has reported that it was delivered, please let us know as soon as possible:
-
Call (08) 6558 1761
-
Or alert us at info@empirecycles.com.au
Empire Cycles is not responsible or liable for lost shipments. We will file a claim with the shipping carrier. Local law enforcement will be involved. Allow up to 21 days for the investigation.
Returns
Can I return my order?
Full-price items: Item may be returned for exchange, or online store credit, within 14 days (minus freight cost).
Sale or Promotional items: All sales are final, not eligible for return.
If you are not entirely satisfied with your purchase, we're here to help! We do not refund on change of mind purchases, however we can exchange full priced items within 14 days of the order date - provided they adhere to the conditions below.
Conditions of Return/Exchange
Promotional or sale items are not eligible for return/exchange. Customised items, consumables, perishable items, and base-layer clothing is not eligible for return/exchange. Returned items must be unused and in their original condition with all tags attached. The returned item must be in the original packaging (e.g. shoe box) and the packaging must be undamaged in saleable condition. Your receipt or proof of purchase must be included with the return. The customer must cover the cost of the return postage for the item (unless deemed faulty or wrong item by our team). If exchanging an item, the customer must also cover the cost of the new item being posted. An invoice for the postage will be sent prior to the new item being sent out.
Please check our full Shipping Policy, Refund Policy and Terms of Service for more information.
Size Chart
Part Numbers
MPN: 95224-3002
Barcode: 888818952946
GLOSS CYPRESS METALLIC / SILVER DUST / S2:
MPN: 95224-3102
Barcode: 888818953394
SATIN BURNT GOLD METALLIC / DOPPIO / S3:
MPN: 95224-3003
Barcode: 888818952908
GLOSS CYPRESS METALLIC / SILVER DUST / S3:
MPN: 95224-3103
Barcode: 888818953202
SATIN BURNT GOLD METALLIC / DOPPIO / S4:
MPN: 95224-3004
Barcode: 888818952694
GLOSS CYPRESS METALLIC / SILVER DUST / S4:
MPN: 95224-3104
Barcode: 888818953110
SATIN BURNT GOLD METALLIC / DOPPIO / S5:
MPN: 95224-3005
Barcode: 888818953479
GLOSS CYPRESS METALLIC / SILVER DUST / S5:
MPN: 95224-3105
Barcode: 888818953714
SATIN BURNT GOLD METALLIC / DOPPIO / S6:
MPN: 95224-3006
Barcode: 888818953288
GLOSS CYPRESS METALLIC / SILVER DUST / S6:
MPN: 95224-3106
Barcode: 888818954094
